Design to Visualization

Automate clash detection on surveyed linework (3D Polylines, 2D Polylines, and Lines) based on layer naming conventions indicating size and type and then generate precise 3D utility models represented as 3D solids in seconds!

Custom CUI that will allow for quickly lower (or raise) pressure pipes to avoid conflicts with other utilities (gravity or pressure) through a 4-step workflow. Custom Package includes step-by-step installation instructions, video demonstrating the workflow, and all necessary support files for successful deployment.

D4C3D Script that performs Utility Clash Detections with Clearance/Separation Parameters defined within Civil 3D

Avoid the chaos of overlapping callouts with Callout Clash Catcher! This powerful tool scans your file for clashing MTEXT, TEXT, and MLEADERS, instantly highlighting problem areas for easy identification and resolution. Whether you’re tidying up a design or prepping for final delivery, this tool ensures your drawings stay clean, clear, and professional. Simplify your workflow and catch those callouts before they cause confusion!

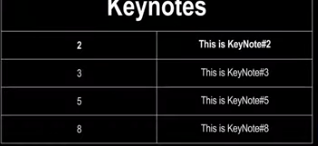

D4C3D Script that will insert Keynotes from a Master Keynote CSV that are identified in each individual file.

D4C3D Script that analyzes your surfaces while providing suggestions for improvement based on predetermined criteria (ie areas, # of Points, Triangle Lengths, etc.). Coupling this script with your surface creation tools leads to a proactive model health approach and facilitator.

D4C3D Script that generates multiple Shared Coordinate XML files based on the number of building outlines in your current file, while also placing COGO Points in your model to verify upper and lower left building corners.

D4C3D Script that will automatically update the styles of a Pressure Network (pipes, fittings and appurtenances) in all files where it is data referenced into, based on the originating model in which they were design in.

D4C3D Script that places COGO Points on all Polylines on a given layer. Script can be modified to support other types of objects as required.

D4C3D Script that will automatically generate Pipe Labels (Gravity and Pressure) on each sheet where pipes are being split by a Matchline

D4C3D Script that will automatically optimize your files by cleaning up and removing clutter and extraneous content not being used, leading to smaller and more manageable files

Reports XREFs and DREFs, along with types, within the current file(s). Great for gaining insights as to how your files are being constructed and if referencing is contributing to poor file/model performance.

D4C3D Script that quickly creates a new version of the current file, while appending the name with the current date.

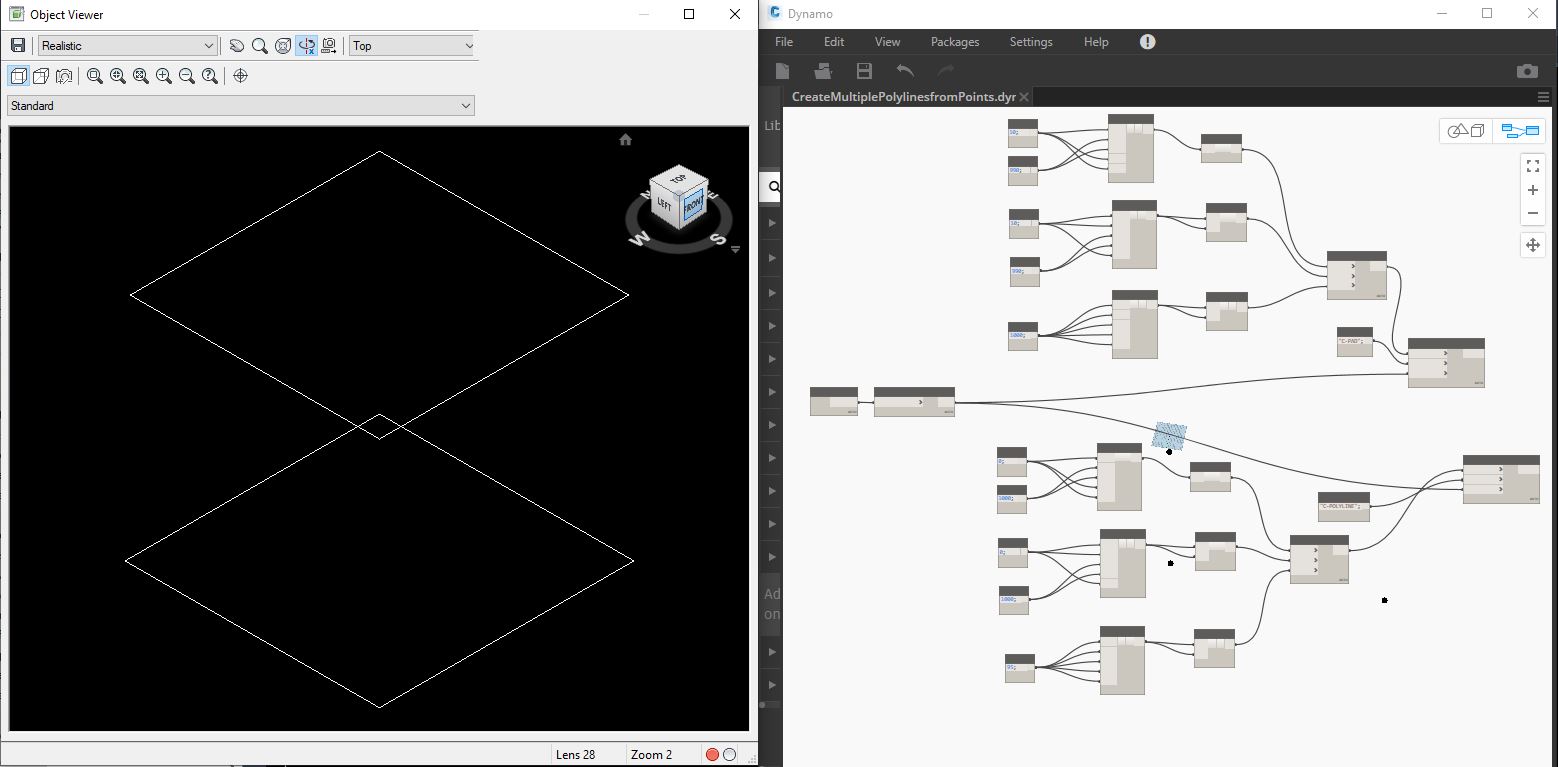

Create multiple Polylines and any elevation from defined points

Create a 3D Polyline from Points

Dynamo Script that creates an Excel report of the Total Lengths of all objects on current layer.

Connect a Pipe Network to Selected Alignment so that it dynamically updates horizontal positioning of structures and pipes

Quick and Easy Dynamo Script that will map Styles being applied to several different types of Civil 3D Components from one standard to another!

Create points, point group and surface from points all in 1 clean routine!

Dynamo Script that converts all 2D Polylines to Civil 3D Alignments

Learn all about Civil Information Modeling (CIM), Execution Plans, Implementation Procedures, Workflows, Uses, Training and Lessons Learned!

Dynamo Script that extracts Property Set definitions of utility layouts to an editable excel table format

This Script is complimentary to the “Dynamo Script Performs Clash Detection with Clearance/Separation Parameters in Civil 3D” available below. After performing the extraction of Property Set definitions to excel using the previous script, this script will allow you to update your Property Set definitions based on edits performed in the excel file.

Complete Catalog Includes Pipes, Crosses, Tees, Elbows, Reducers, Caps, Couplings, Wyes, Reducing Wyes, Reducing Tees, Reducing Crosses, Butterfly Valve (Short and Long Body), Gate Valve, Plug Valve and Hydrants
